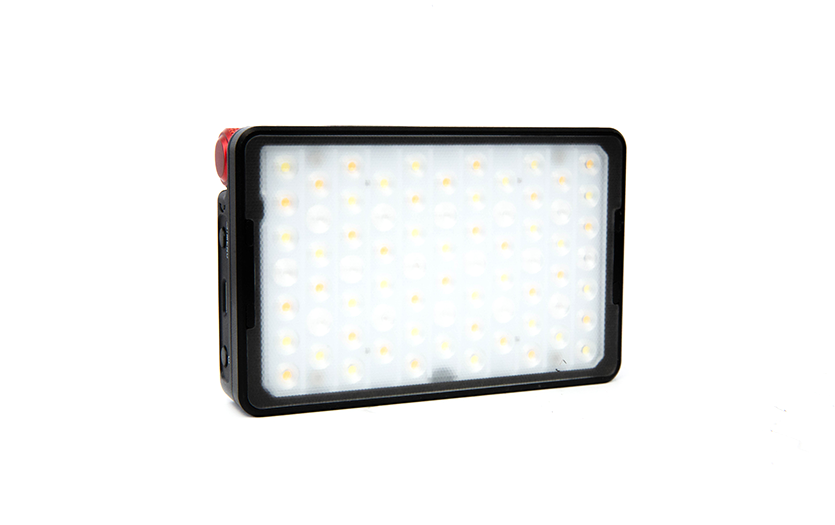

The MC Pro 8-Light Kit is a super flexible battery lighting package featuring eight MC Pro 5W RGBWW Lensed Mini LED Panels. Designed for portability and efficiency, the panels can be stored and charged via AC or D-Tap power, ideal for use in the studio or on location. Its drop-in charging system uses contact pins for a seamless, wireless experience, while two built-in USB ports allow you to charge up to ten fixtures at once. The kit also includes eight sets of magnetized MC Pro modifiers and fourteen mounting accessories, providing a complete, flexible lighting solution for any setup.
- 8 x Aputure MC Pro Light
- 8 x Aputure MC Pro Dome Diffuser
- 8 x Aputure MC Pro Light Grid
- 8 x Aputure MC Pro Flat Diffuser
- 1 x D-Tap (Male) to D-tap (Male) Power Cable
- 4 x Cold Shoe Ball Head Mount
- 4 x Aputure 1/4 Screw to Magnet Attachment
- 1 x 13A to IEC C14 Cable
- 2 x USB-A to USB-C Cable
- 4 x 5/8″ Baby Pin to 1/4″ Screw
- 2 x Super Clamp with Ball Head Arm
- 8 x Aputure Metal Adhesive Mounting Pads

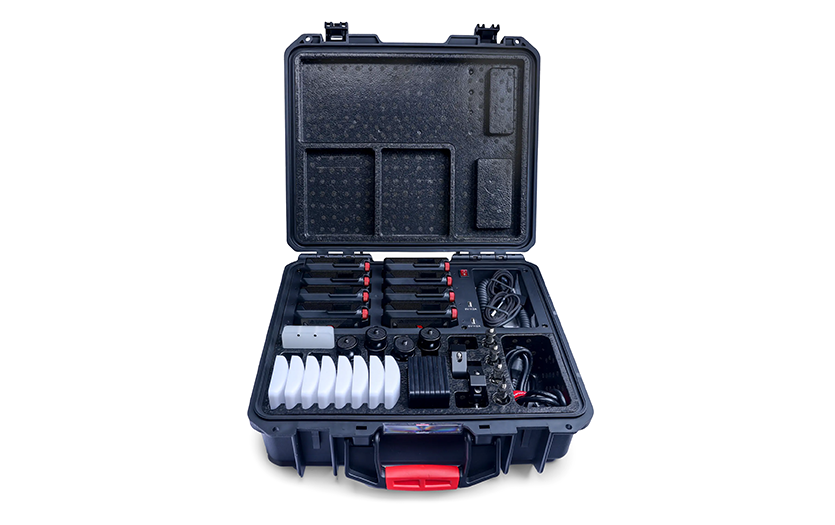

- 1 x Aputure MC Pro 8-Light Charging Case
| Specification | Detail |
|---|---|
| Light type / Output | RGBWW lensed mini LED — 5 W max output per fixture :contentReference[oaicite:0]{index=0} |
| Color temperature (CCT) | 2,000 K – 10,000 K :contentReference[oaicite:1]{index=1} |
| Color accuracy & indices | CRI 96, TLCI 96, CQS 95, SSI (D56) 72, SSI (Tungsten) 82, TM-30 Rf ≈ 94, TM-30 Rg ≈ 103 :contentReference[oaicite:2]{index=2} |
| Beam angle / optics | 45° beam angle (designed for tighter throw) :contentReference[oaicite:3]{index=3} |
| Brightness / Lux (typical) | ~1,585 lux @ 0.5 m (5,600 K) bare :contentReference[oaicite:4]{index=4} |
| Power consumption / current / voltage | Max consumption: ~7 W; Operating current ~0.84 A; Voltage range ~3.0-4.2 V :contentReference[oaicite:5]{index=5} |
| Battery (per fixture) | 4,200 mAh lithium-polymer (3.7-4.2 V) ≈ 15.5 Wh :contentReference[oaicite:6]{index=6} |
| Battery runtime (max output) | Approx. 120 minutes (max output) :contentReference[oaicite:7]{index=7} |
| Charge time | About 90 min (via USB-C 5V/2A) :contentReference[oaicite:8]{index=8} |

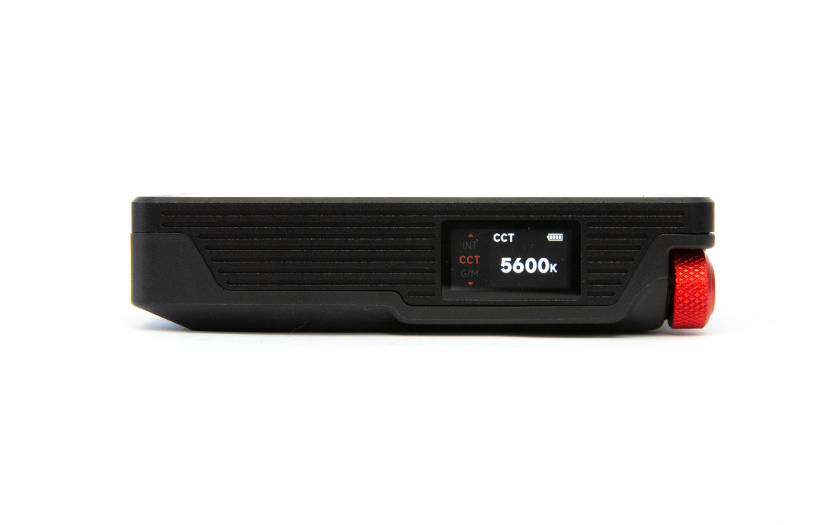

| Control & connectivity | On-board controls, Sidus Link app, DMX/RDM (via adapter), LumenRadio CRMX, firmware-upgradeable :contentReference[oaicite:9]{index=9} |
| Wireless ranges | Bluetooth: ≤ 80 m; LumenRadio (CRMX): ≤ 100 m :contentReference[oaicite:10]{index=10} |
| Dimensions (fixture) | 108 × 70 × 25 mm (4.25 × 2.76 × 0.98 in) :contentReference[oaicite:11]{index=11} |
| Weight (fixture) | 247 g (0.54 lb) :contentReference[oaicite:12]{index=12} |
| IP / environmental rating | IP65 (dust & water resistant) :contentReference[oaicite:13]{index=13} |
| Operating temperature | –20 °C to +45 °C :contentReference[oaicite:14]{index=14} |
| Cooling method | Passive cooling (no fan) :contentReference[oaicite:15]{index=15} |
| Kit & charging case (multi-light) | Charging case supports drop-in contact pin charging, powers multiple fixtures, includes USB ports. (e.g., MC Pro 8-Light Kit case) :contentReference[oaicite:16]{index=16} |
