The Atomos Shinobi Go is a compact, daylight-viewable 5-inch HDR monitor designed for on-camera use. Featuring a 1000-nit touchscreen display, 4K HDMI and USB-C inputs, and professional monitoring tools like waveform, false colour, and LUT support, it delivers accurate, reliable image monitoring in any lighting condition. Lightweight, durable, and battery-friendly, the Shinobi Go ideal whether mounted to the top of a camera or on the side of a gimbal.

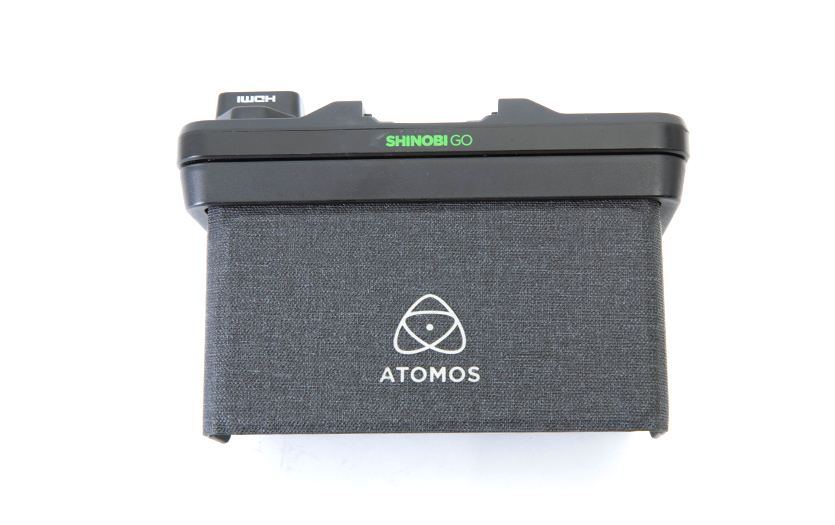

1 x Atomos Sunhood for Shinobi GO
1 x 7″ Noga Arm
1 x Shinobi GO HDMI Locking Cable Adapter
1 x Atomos Locking HDMI Cable 30cm
1 x Short HDMI Cable
1 x USB-C to USB-C Cable
3 x Sony NP-F 45Wh Battery
1 x NP-F Battery Charger
| Specification | Detail |
|---|---|
| Display size / resolution | 5.2″ IPS touchscreen, 1920 × 1080 resolution :contentReference[oaicite:1]{index=1} |
| Brightness | 1500 cd/m² (nits) – daylight-viewable :contentReference[oaicite:2]{index=2} |
| Inputs / video support | HDMI 1.4 input, supports UHD/4K up to 30p; full HD up to 60p :contentReference[oaicite:3]{index=3} |
| HDR support & LUTs | HDR (HLG/PQ) and AtomHDR mode, 3D LUT support (load .cube files) :contentReference[oaicite:4]{index=4} |
| Monitoring tools | Waveform, histogram, vectorscope, false colour, zebras, focus peaking, frame-guides for social & cinematic formats :contentReference[oaicite:5]{index=5} |
| Dimensions & weight | 151 × 91.5 × 20.8 mm (28.5 mm with locking adaptor), weight ≈ 210 g :contentReference[oaicite:6]{index=6} |

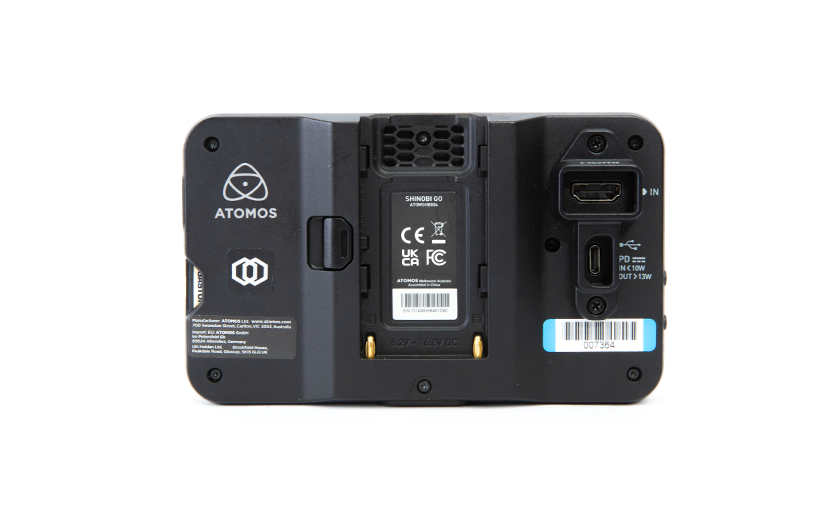

| Power options | Sony NP-F / L-Series battery slot or USB-C PD power input/output :contentReference[oaicite:7]{index=7} |
| Body / mounting | Slim design with ¼-20 mount and anti-twist holes; locking HDMI & USB-C cable adapter included :contentReference[oaicite:8]{index=8} |
| Operating environment | Plastic/ABS body, passive cooling; operating temperature up to ~40 °C :contentReference[oaicite:9]{index=9} |
| What’s in the box | Shinobi GO monitor, USB-C cable, HDMI/USB-C locking cable adapter, quick start guide :contentReference[oaicite:10]{index=10} |
