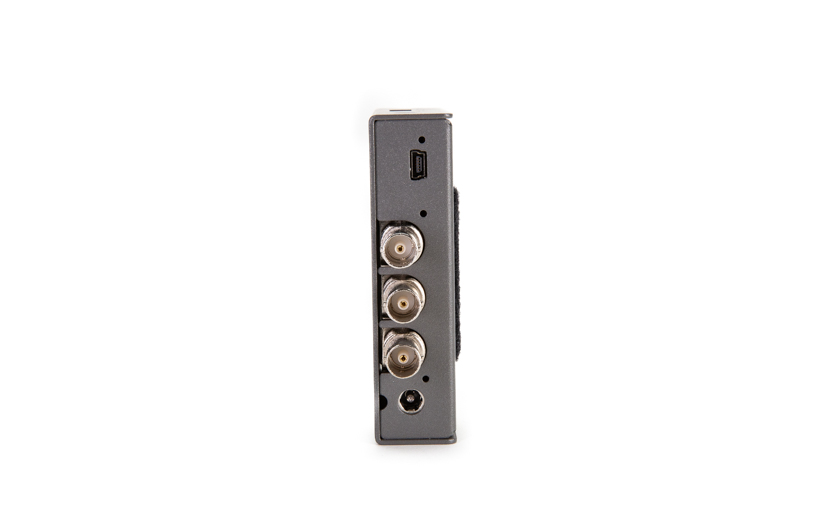

BlackMagic Design SDI to HDMI 4K
ENQUIRE NOWThe Blackmagic Mini Converter range are the worlds most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards. Simply plug in and Mini Converters will convert between your equipment all automatically.
You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter.
SDI Video Input: 4 x 1.5Gb/s SDI or 2 x 3G-SDI or 1 x 6G-SDI.
HDMI: HDMI type A out.
Multi Rate Support: Auto detection of SD, HD or 6G-SDI on Input 1
Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
Reclocking: Yes
Standards
SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
HD Format Support: 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M and SMPTE 425M.
SDI Video Rates: SDI video connections are switchable between standard definition, high definition and 6G-SDI.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision: 4:2:2 and 4:4:4
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.
HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
HDMI Color Space: YUV and RGB
HDMI Color Precision: 4:2:2 and 4:4:4
