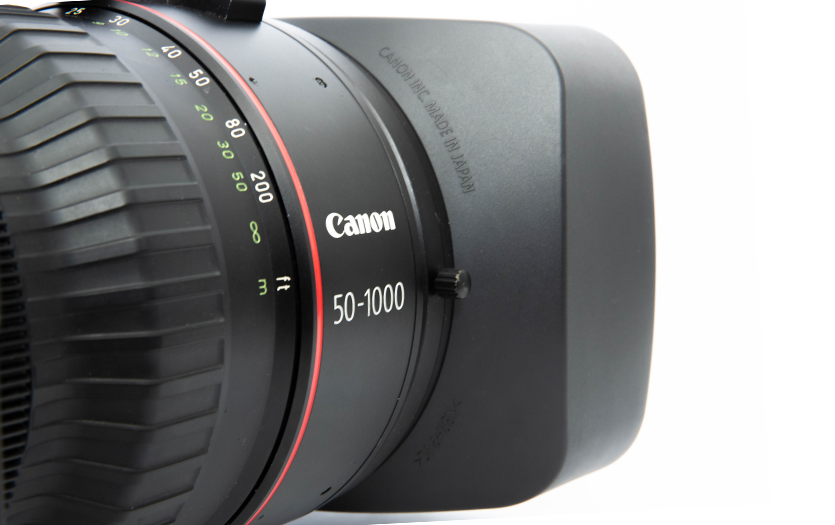

The Canon CN20x50 cine-servo zoom lens designed for wildlife, sport, music, entertainment and other productions that demand long-range versatility with fantastic image quality. Covering a massive 50–1000 mm focal range (extendable to 75–1500 mm via its built-in 1.5× extender), this lens delivers stunning optical performance in true 4K resolution across the entire zoom range.
Designed for ENG-style shooting, the CN20x50 features Canon’s renowned servo drive unit, offering precise electronic zoom, focus, and iris control which can be controlled locally or via an RCP in an OB truck or studio.  Zoom and focus demands are also supplied with the lens.
- 1 x Canon ZSD-300D Digital Zoom Servo Demand
- 1 x Canon FPD-400D Digital Focus Demand
- 1 x D-Tap to 12-Pin Power Cable for Canon Lenses
- 1 x ARRI LS-9 Lens Support
- 1 x ARRI BP-8 Bridge Plate
- 1 x Vocas MBS-100 Mattebox Support
- 1 x ARRI Dovetail
- 2 x 19mm Support Rod – 44cm
- 1 x 127mm UV Screw Filter
- 1 x Canon CN20 Lens Cap
- 1 x 127mm Lens Cap for Canon CN20
- 1 x Lens Hood Cap for Canon CN20
- 1 x PL Cap
- 1 x Flight Case for Canon CN20 Lens
| Specification | Detail |
|---|---|
| Focal length | 50 – 1,000 mm (with built-in 1.5× extender: 75 – 1,500 mm) :contentReference[oaicite:1]{index=1} |
| Zoom ratio | 20× :contentReference[oaicite:2]{index=2} |
| Maximum relative aperture | T5.0 at 50-560 mm; T8.9 at 1,000 mm; with extender: T7.5 at 75-840mm; T13.35 at 1,500mm :contentReference[oaicite:3]{index=3} |
| Iris blades | 11-blade diaphragm :contentReference[oaicite:4]{index=4} |
| Image format / coverage | Super 35mm large-format single-sensor; 4K optical performance across the range :contentReference[oaicite:5]{index=5} |
| Minimum Object Distance (MOD) | 3.5 m / 11.5 ft :contentReference[oaicite:6]{index=6} |
| Front diameter / filter size | Ø 136 mm (front diameter) :contentReference[oaicite:7]{index=7} |
| Dimensions (W × H × L) | ~175 × 170.6 × 405.2 mm (PL mount) / ~413.2 mm (EF mount) :contentReference[oaicite:8]{index=8} |
| Weight (approx.) | 6.6 kg (≈14.6 lb) :contentReference[oaicite:9]{index=9} |
| Mount options | EF (E1) or PL (P1) versions :contentReference[oaicite:10]{index=10} |
| Drive unit / operation style | Removable digital drive unit for servo zoom/focus/iris (broadcast-style); unit can be removed for manual cinema-lens use :contentReference[oaicite:11]{index=11} |
| Mounting gear & accessories compatibility | Supports matte boxes, lens support rods, standard 0.8/0.5 gear modules; high-end optical and mechanical design for field, nature & sports applications :contentReference[oaicite:12]{index=12} |
