Teradek Bolt 4K LT 750

ENQUIRE NOW

The Bolt 4K 750 TX/RX Set is a real-time wireless video transmission system that supports 1080p and 2160p video signals at 60FPS with less than 1ms of delay at up to 750 feet. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. Includes integrated 1/4″”x20 and M3 mounting points.

Transmit and receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 feet of range.

Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0

Optional Gold Mount or V-Mount battery plate with pass-through power available on both TX & RX.

  • 1 x Teradek Bolt LT 750 4K Transmitter
  • 1 x Teradek Bolt LT 750 4K Receiver
  • 1 x Thin BNC Cable (12″”)
  • 1 x Thin BNC Cable (24″”)
  • 2 x Short HDMI Cable (4K)
  • 1 x USB-A to Micro USB Cable
  • 2 x 2-Pin Lemo to D-Tap Power Cable
  • 1 x Mains Power Supply to 2-Pin Lemo (9V)
  • 7 x Teradek Wifi Antenna 2dBi 2.4/5.8GHz (RP-SMA)
  • 1 x 1/4″” Light Stand Adapter
  • 1 x 7″” Noga Arm
  • 2 x LFTV Bebop Clear Pouch (9×5″”)
  • 1 x Teradek Bolt 4K LT Flight Case

Wireless Range 750′ / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Latency < 0.01 ms
RF Power 17 dBm
Wireless Video Compression Uncompressed

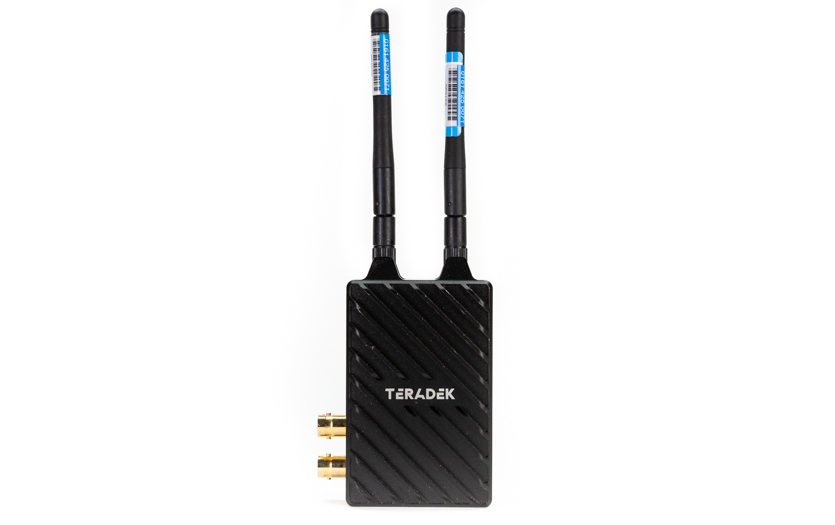

Transmitter Antenna Ports 2 x RP-SMA

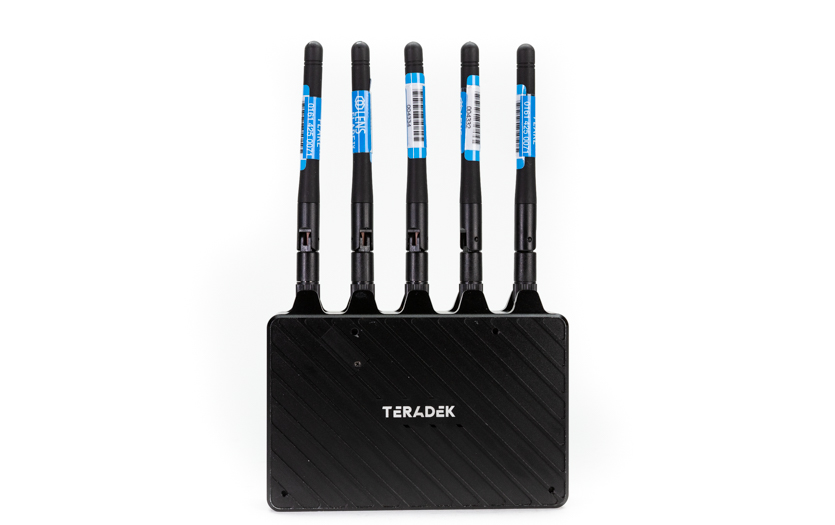

Receiver Antenna Ports 5 x RP-SMA
Transmitter Video Connectors 1 x HDMI Input
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
Receiver Video Connectors 1 x HDMI Output
1 x BNC (3G-SDI) Output
Transmitter Other I/O 1 x USB Micro-B Input
Receiver Other I/O 1 x USB Micro-B Input
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Encryption 256-Bit AES
Video Format SDI/BNC:
1080p 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 59.94, 60 fps
1080PsF 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30 fps
1080i/720p 4:2:2 YCC 10-Bit at 50, 59.94, 60 fps
576p at 25, 50 fps
576i at 50 fps
480p at 59.94, 60 fps
480i at 59.94 fps
HDMI:
UHD 4K 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps
1080p 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080PsF 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps
1080i/720p 4:4:4 RGB 10-Bit at 50, 59.94, 60 fps
576p at 25, 50 fps
576i at 50 fps
480p at 59.94, 60 fps
480i at 59.94 fps
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Timecode Support Yes
Transmitter Panel Type OLED
Receiver Panel Type OLED
Transmitter Built-In Battery None
Receiver Built-In Battery None
Transmitter Power Connector 1 x 2-Pin LEMO (6 to 28 VDC) Input
Receiver Power Connector 1 x 2-Pin LEMO (6 to 28 VDC) Input
Transmitter Power Consumption Device: (9 W)
Receiver Power Consumption Device: (11 W)
Operating Temperature 0 to 40°C
